At the recent InterNepcon Japan Exposition held at the Tokyo "big site" their "IC Packaging Technology Expo" contained some new information and some retreads that we have seen on IFTLE previously. Below I'll cover a few new items that may be of interest to you.

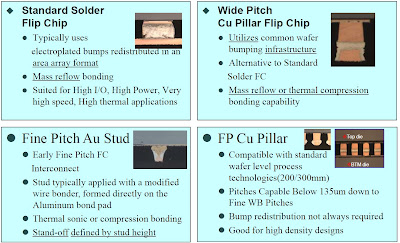

TI's Mark Gerber, a key player in bringing up their Cu pillar technology at Amkor addressed 3D packaging technology for next generation devices. Mark broke out current FC interconnect technologies into the following 4 categories indicating that fine pitch gold stud bumping was confined mainly to Japan.
(Click on any of the images below to enlarge them)
Sung-Il Cho of Samsung's test and package center looked at Samsung's Packaging Roadmap. He offered the following categorization for their DRAM, Flash and system LSI chips...
...and the following roadmap for flash technology development for solid state drives. Consistent with their corporate policy of holding new technology information "close to the vest" their inputs on 3D packaging with TSV were either ITRS roadmap slides or Yole roadmaps that have been published on these IFTLE pages before.

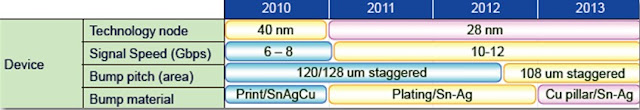

Keiichirou Kata of Renesas Advanced Package Development Dept. addresses their packaging roadmaps. He sees the major developing areas as FC BGAs, WLP and what he calls 3D Jisso (3D IC integration). Their FC technology roadmap is driven by desire for tighter pitches.
28 nm node chips will see a move to 108 um pitch and copper pillar bumps by the end of 2012.
Their proposed fan out WLP is an RDL first technology which they contend eliminates the issues of chip movement due to mold compound shrinkage.
They are moving to wide IO DRAM standards for low power DDR3 and beyond.
Ryoji Matsushima from Toshiba's Memory Packaging Engineering Dept. discussed equipment materials and processing issues for thin memory packages. High memory capacity, high memory access speed and thinner packages all point towards memory stacking with TSV.

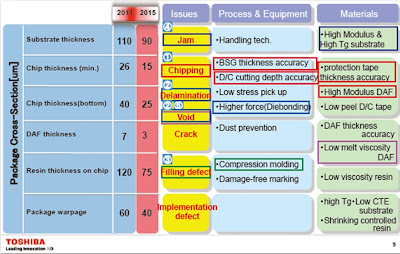

Technical issues with thin packages are shown on the slide below.
